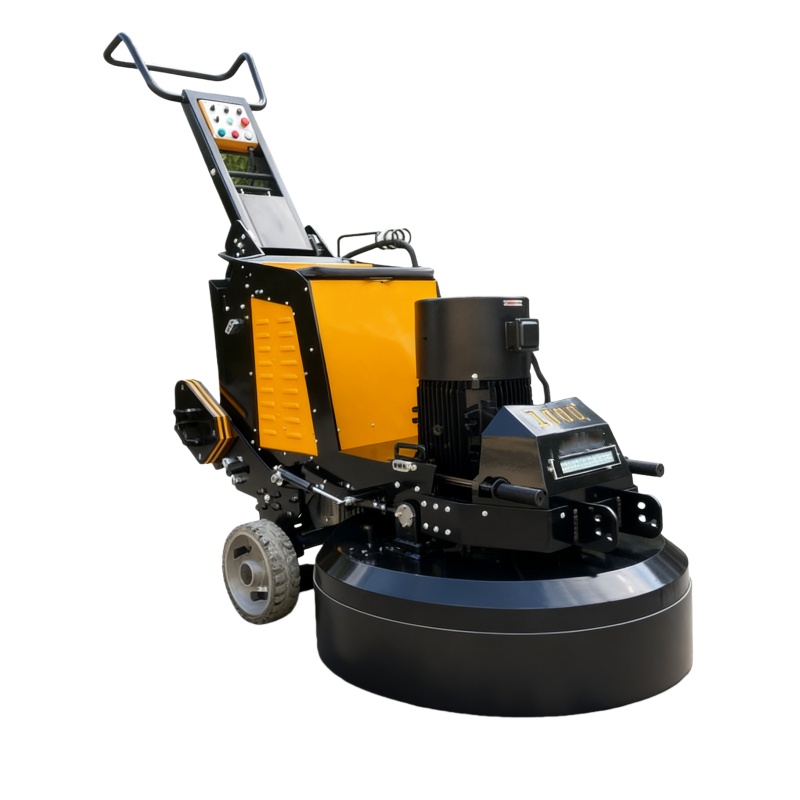

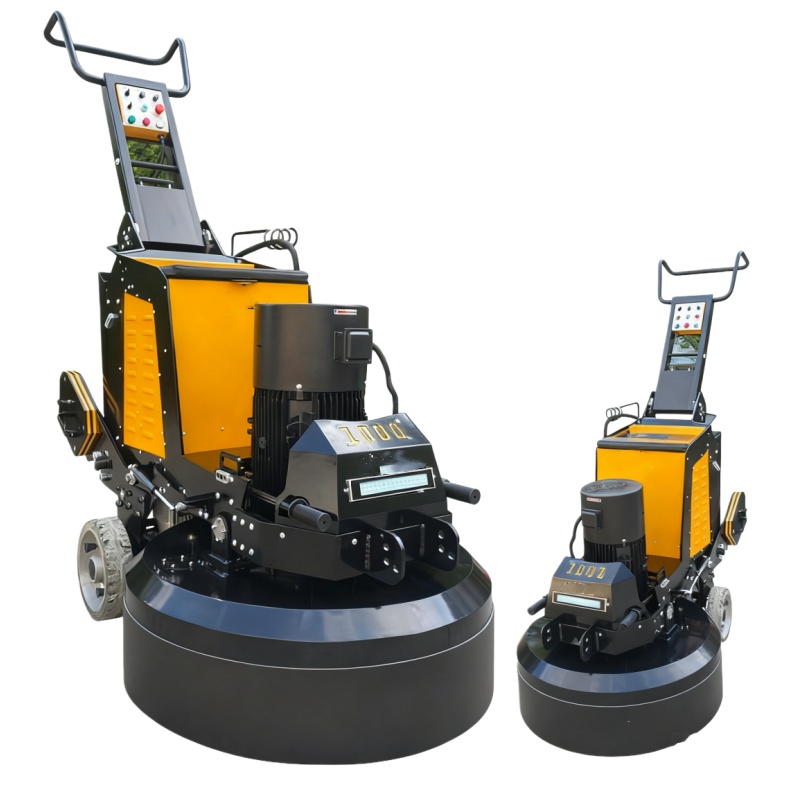

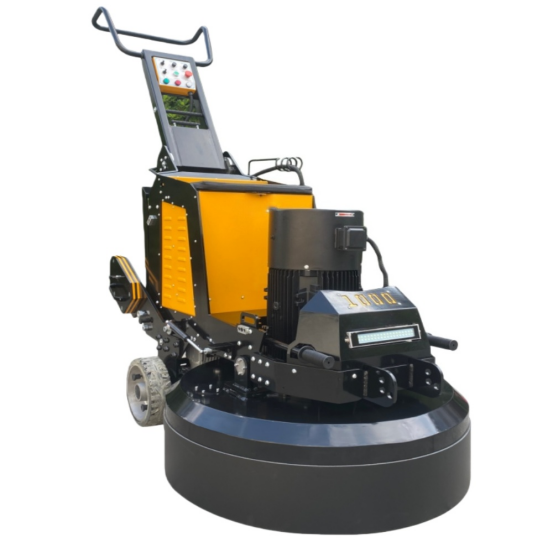

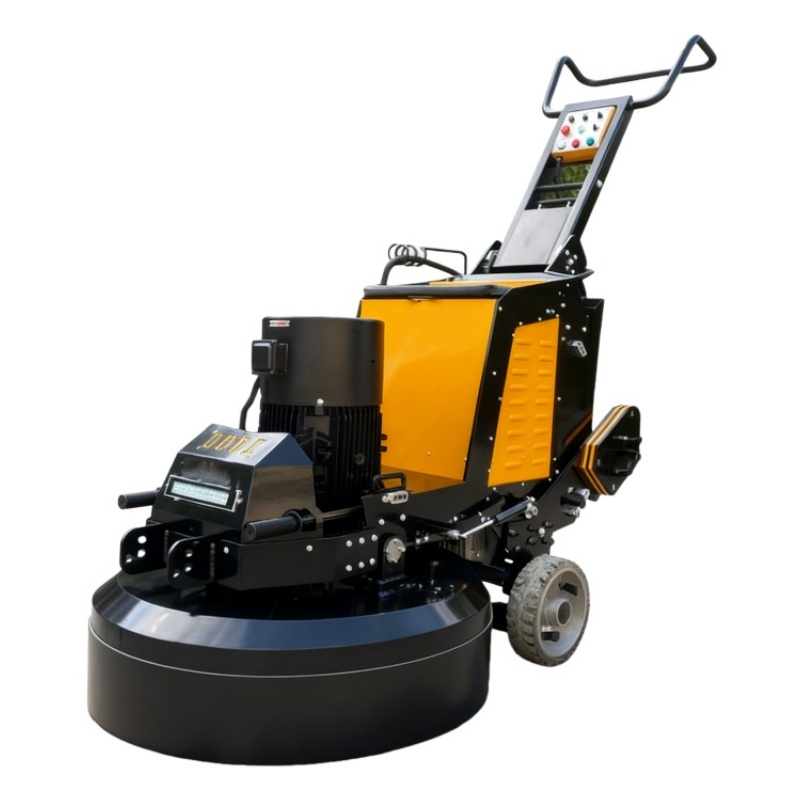

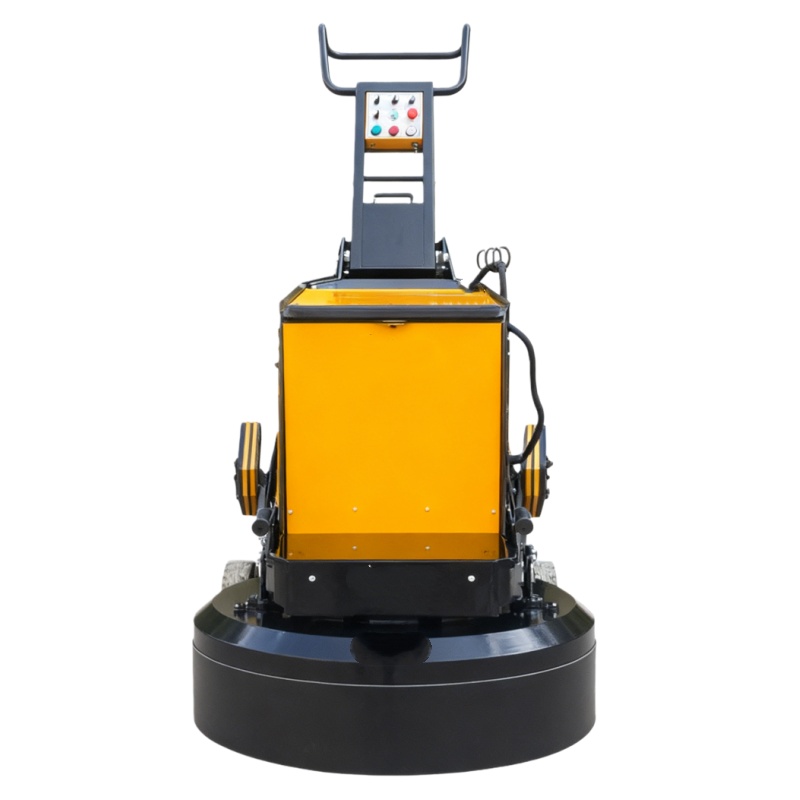

Seated Remote Control Grinder GX-1000
frequency transformer 30 P Hapemont
power generating or power driven machine 22 KW
source Three-phase AC 380 V*45 A
Self rotation speed 0-1800 rpm(revolutions er minute adjustable)
Speed of rotation 0-200 rpm(revolutions per minute adjustable)
speed of travel 0-20 m/min(revolutions per minute adjustable)
Walking motor 2×1.0 kW(dual drive)
Working width 990 mm
Number of grinding pieces Four plates 24 pieces (340 mm*4)
control method Manual self-drive/remote
control total weight 720 Kg
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
1.Using aluminum inlaid steel gearbox body
long life,high precision,good heat dissipation;
2.Integrated frame is flat and durable,
three-level weight design,easy to operate;
3.Equipped with 22 Kw high-power motor to ensure strong power,
electrical control components are imported Schneider Electric;
4.The design of planetary gearbox body has no ground leakage and wear,
which ensures the quality of the project.The driving seat design saves more effort for workers.
| 重量 | 1664 磅 |
|---|---|
| 尺寸 | 150 × 95 × 135 英寸 |
| Power | 22KW |
| Source | Three-phase AC 380V*45A |
| Working width | 990mm |
| Walking motor | 2*1.0kw |
