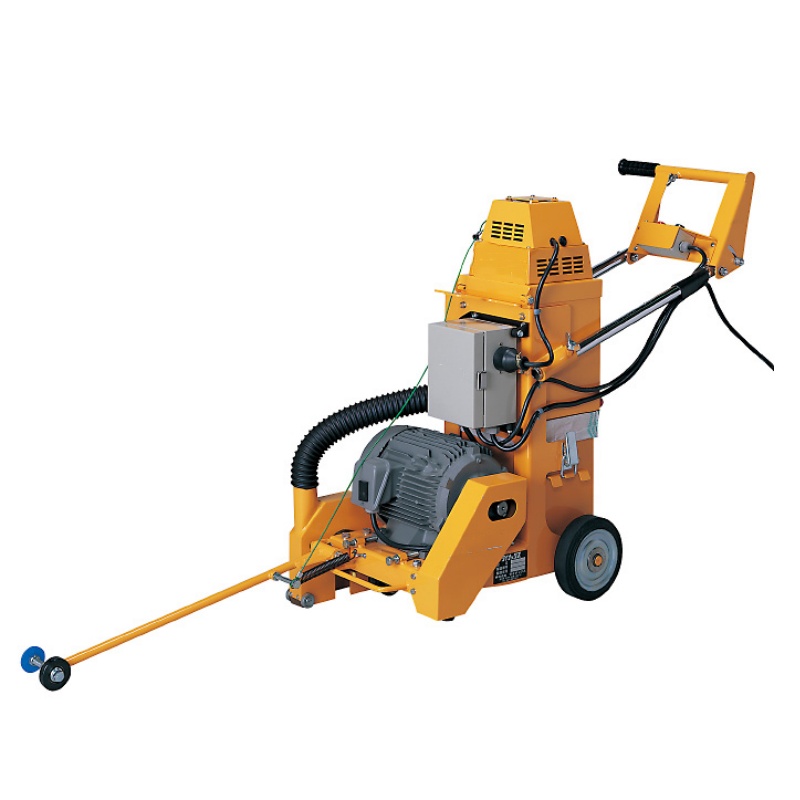

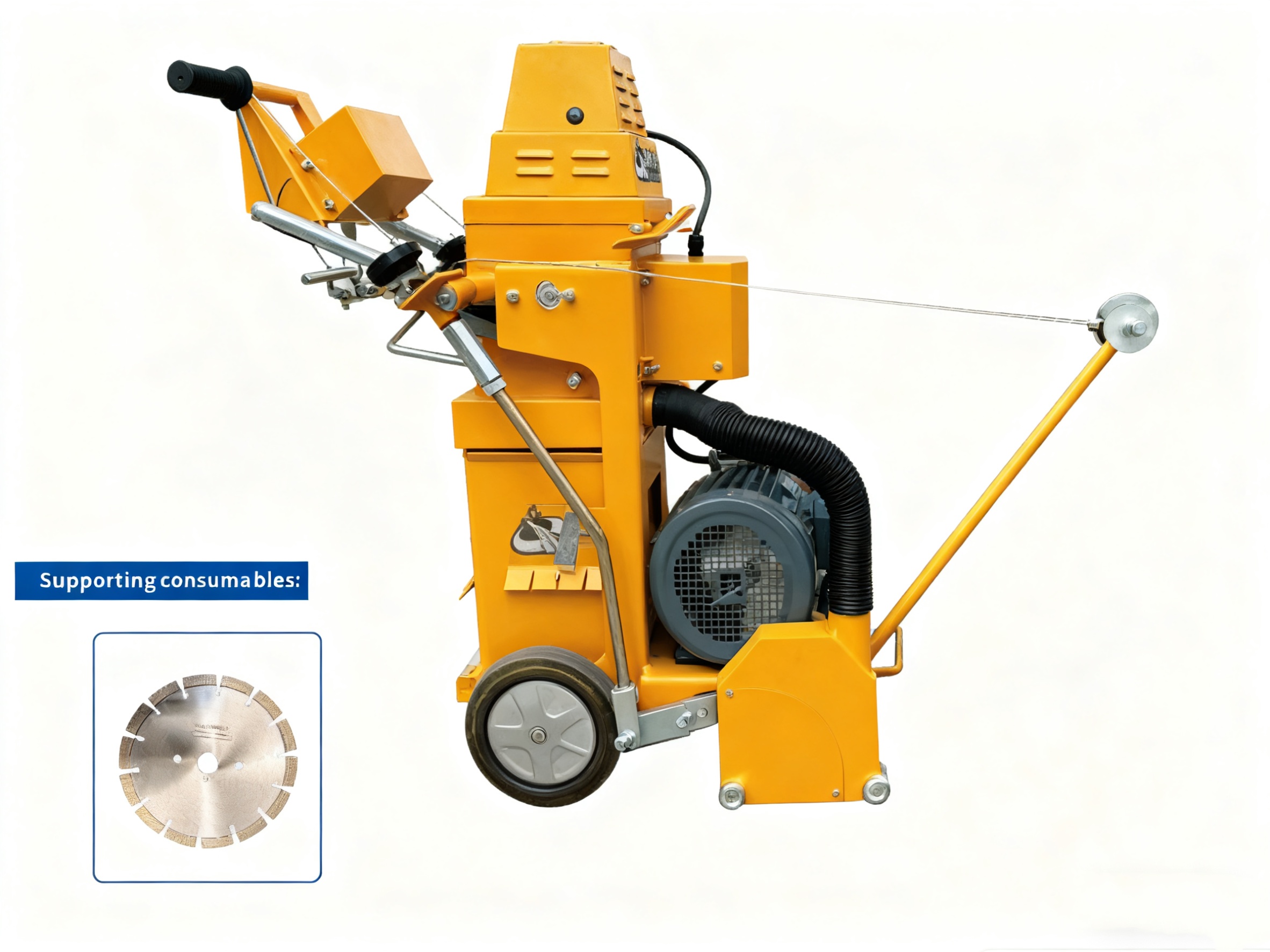

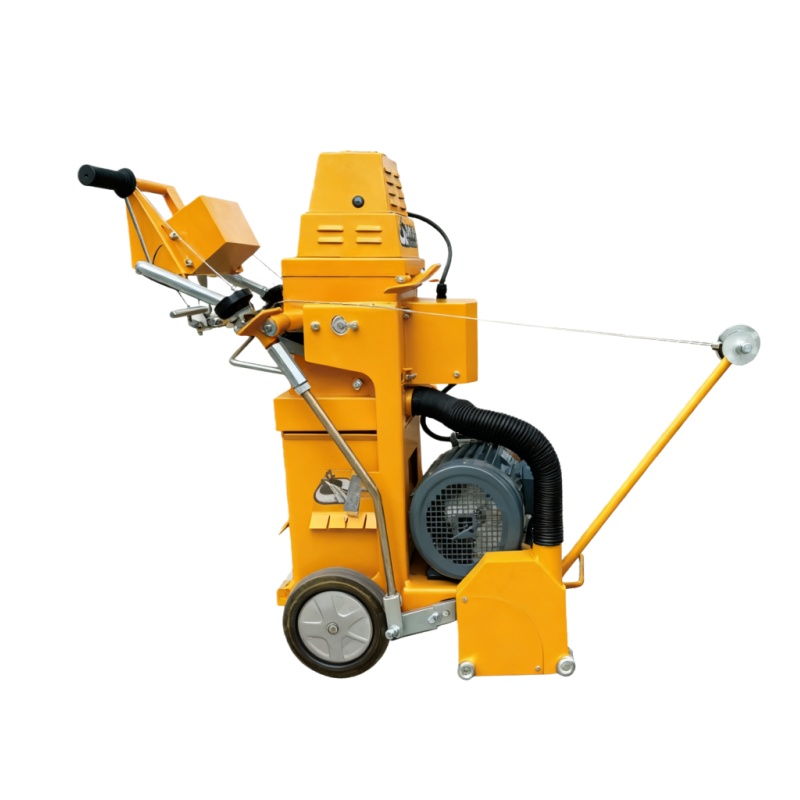

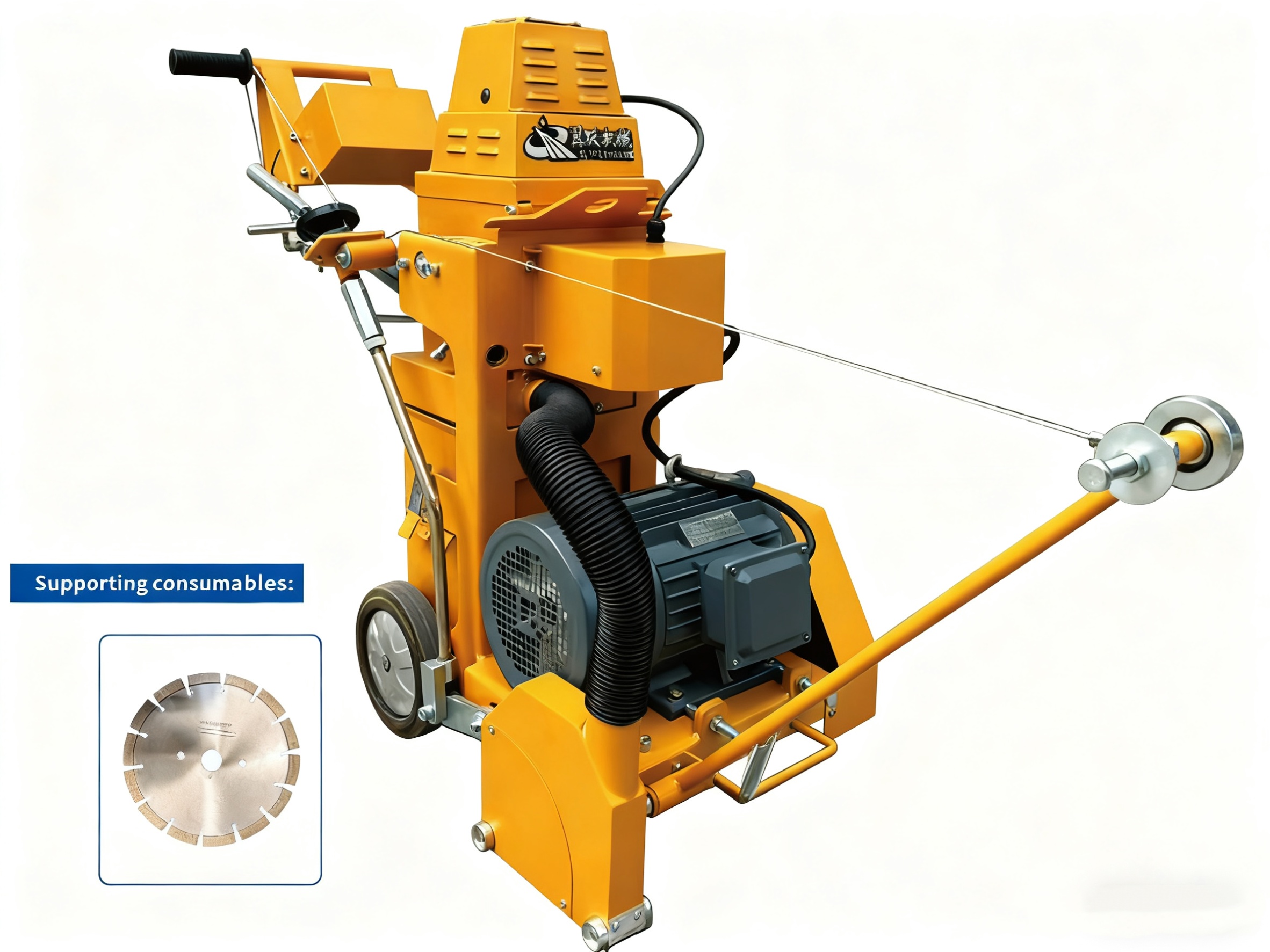

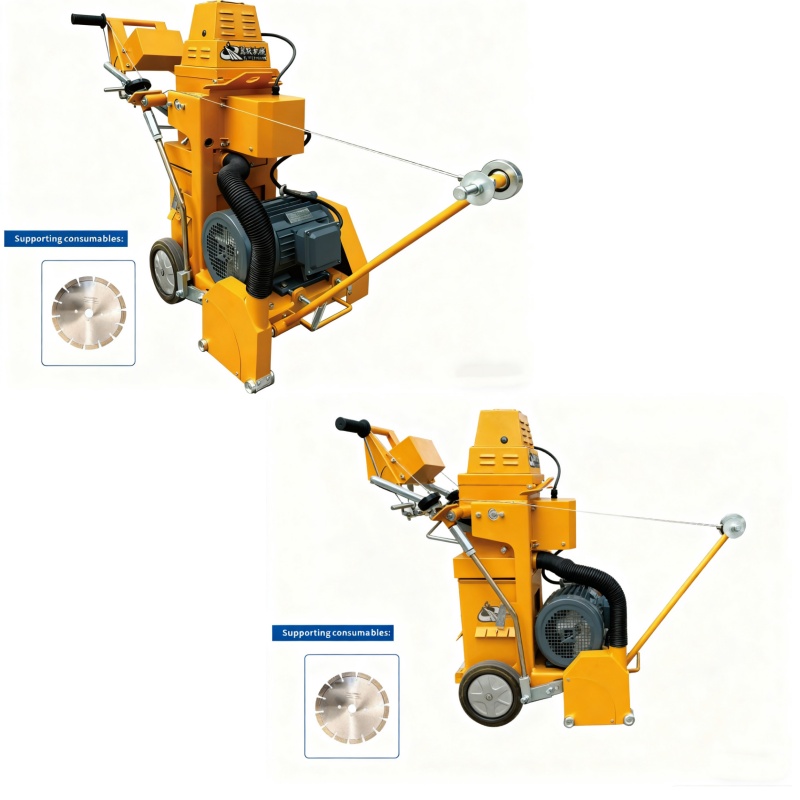

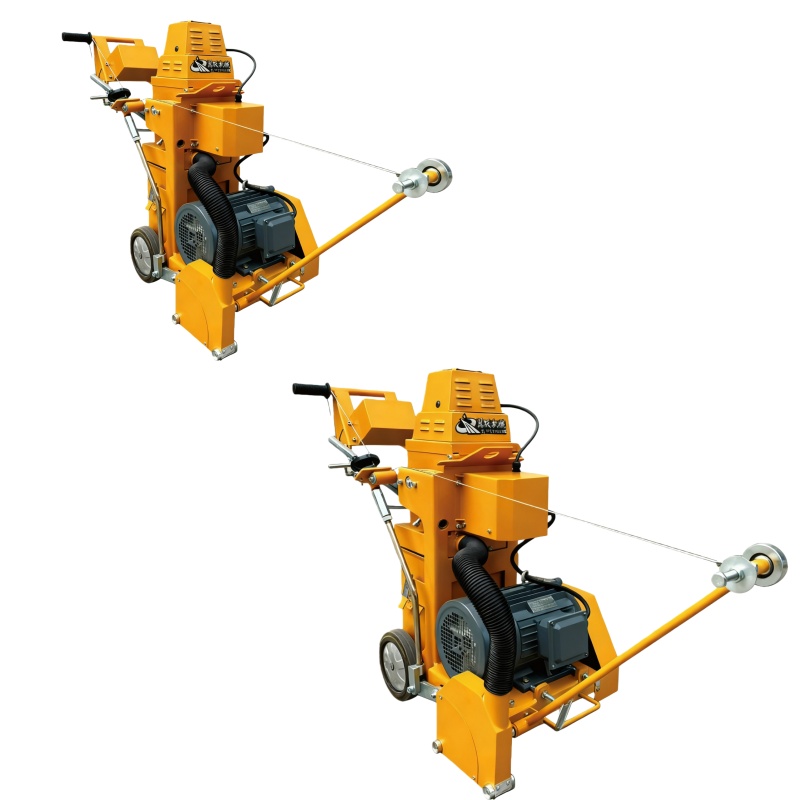

Dry dustless cutting machine GX-320
Body size Length,width and height 1200,350,896 mm
total weight 115 Kg
Grinding width 2.4-10 mm
any power generating or power driven machine 4 KW*4 P(5.0 ps)
source Three-phase AC 380 V*9.5 A
Collection machine specifications output power 1.0 KW
maximum quantity of wind 3.0 m³min
Collection tank vo-lume 15 L
Rated voltage/current Single phase 220 V*5 A
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
1.Using 4 KW high-power motor and imported suction motor,
ensure efficiency and realize dust-free construction in the process of construction;
2.Small body,the armrest can be freely extended
and adjusted to the best construction position;
3.Equipped with 2.5 mm and 5 mm different width of cutting blade,
the cutting depth can be adjusted accurately to meet the needs of different customers;
4.Humanized design,each part of the vibration pad
is added to reduce mechanical vibration and increase the comfort of operation;
5.The cutting direction can be adjusted directly through
the front and back,without line adjustment,simple and convenient operation.
| Weight | 286 lbs |
|---|---|
| Dimensions | 122 × 56 × 107 in |
| Body size | Length,width and height 1200,350,896 mm |
| Grinding width | 2.4-10 mm |
| any power generating or power driven | 4KW*4P(5.0ps) |
| source | Three-phase AC380V*9.5A |
